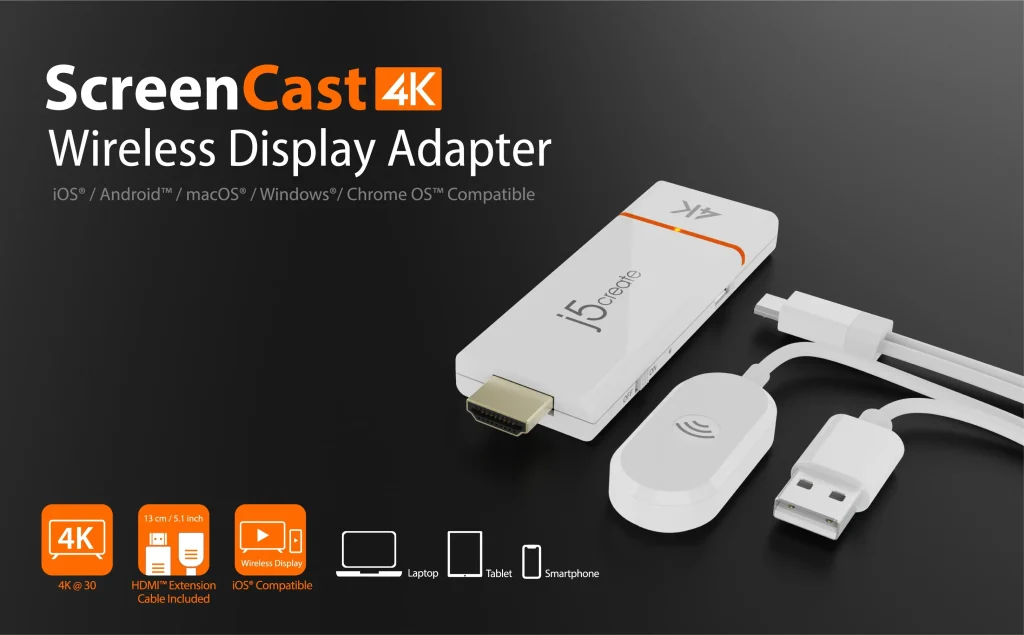

JVAW76 ScreenCast 4K Wireless Display Adapter

Q1. Is this compatible with iPhones and iPads?
Yes, via native AirPlay®.

Q2. Can I cast YouTube or Netflix from my Android?
Yes, using Miracast™ or Chromecast™ depending on the app and phone.

Q3. Do I need to install any apps to use it?
No apps or drivers are needed — it’s plug-and-play.

Q4. Can I use this with a projector?
Yes, any display with HDMI™ input is supported.

Q5. Is it compatible with MacBook?
Yes, it supports macOS® via AirPlay®.

Q6. Does it support 4K video playback?
Yes, up to 3840 × 2160 (4K @ 30 Hz).

Q7. Is Wi-Fi necessary for it to work?
No, it creates a direct casting connection without needing a Wi-Fi network.

Q8. Does this work on Smart TVs?
Yes, any TV or display with HDMI™ input will work.

Q9. What if my TV doesn’t have a USB port for power?
Use a USB power adapter (5V/1A) or power bank.

Q10. Can I mirror my Android phone?
Yes, via Miracast™.

Q11. What’s the wireless range?
Up to 50 ft (15 m) in open environment.

Q12. Can I use this for business presentations?
Yes, with PIN-code protection for secure Miracast® sessions.

Q13. Does it support Chromecast™ from Chrome browser?
Yes, native support for Google Cast™ is included.

Q14. Is this suitable for travel?
Yes, it’s compact and light with a durable plastic body.

Q15. Can I use it without Internet?
Yes, casting works via direct wireless protocols.

Q16. Does it support audio along with video?
Yes, it supports 2.1 audio over HDMI™.

Q17. Is there a mobile app to control it?
No app needed — all controls are through native OS casting tools.

Q18. Can I use it in school or classroom setups?
Definitely. It’s great for educational screen sharing.

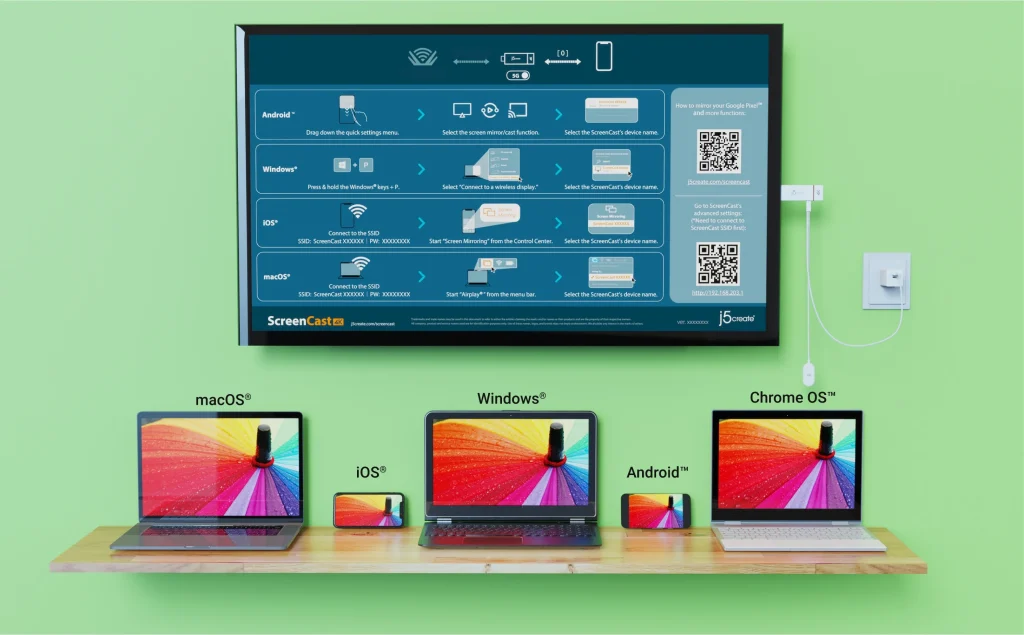

Q19. How do I connect it to my TV?
Plug into HDMI™, power it via USB™, and start casting from your device.

Q20. Is this future-proof?
Yes, with support for 4K, dual-band Wi-Fi, and cross-platform standards.

Technical Specifications

Supported Resolutions:

• 3840 × 2160 @ 30 Hz (4K UHD)

• 1920 × 1080 @ 60 Hz (Full HD)

• 1280 × 720 @ 60 Hz (HD)

Audio Channel: 2.1 via HDMI™
Wireless Protocols: IEEE 802.11ac (dual band)
Wi-Fi Frequencies: 2.4 GHz & 5 GHz
Wireless Range: Up to 50 ft / 15 m (open space)
Supported Standards:

• Miracast™

• AirPlay®

• Google™ Chromecast™

Power Supply: USB™ Type-A (5V/1A)
Connectivity: HDMI™ male output
Enclosure Type: Plastic
Color: White

Dimensions & Weight:

• Height: 2.2 in (57 mm)

• Width: 0.95 in (24 mm)

• Depth: 0.41 in (10.5 mm)

• Weight: 31.5 g

Operating Temp: +14°F to +104°F (-10°C to +40°C)
Storage Temp: -4°F to +122°F (-20°C to +50°C)
Humidity: < 85% (non-condensing)

Manufacturer & SKU

Manufacturer: j5create
SKU: JVAW76
