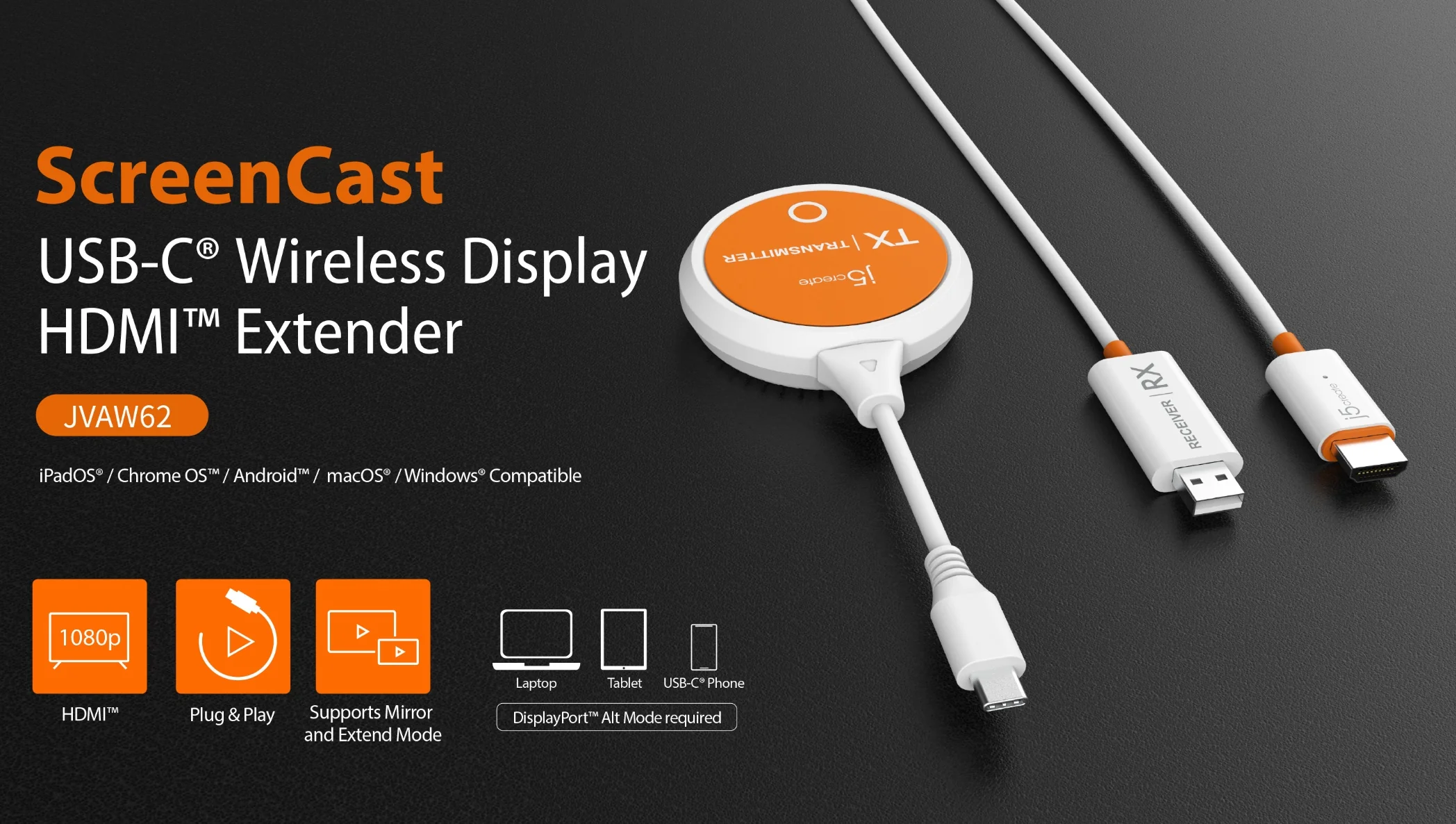

JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender

Technical Specifications

Resolution Support: 1080p @ 60Hz, 720p @ 60Hz
Wireless Frequency: Dual-band 2.4GHz + 5GHz
Range: Up to 15 meters (50 ft)
HDCP Version: 1.4
HDMI Version: 1.3
Antenna Type: Internal
Power Source: USB-C® + USB-A
Encryption: WPA2
Compatible OS: Windows®, macOS®, iOS®, Android™, Chrome OS™
Weight: Transmitter: 54g | Receiver: 31.5g
Cable Lengths: TX: 3.34 in | RX: 23.6 in

Q1. Is Wi-Fi needed for this device to work?
No. It creates a direct wireless connection between TX and RX.

Q2. Can I use this with my MacBook Pro?
Yes, as long as your USB-C® port supports DisplayPort™ Alt Mode.

Q3. Will this work on Smart TVs?
Yes, it works on any TV or monitor with an HDMI™ port.

Q4. Does it support 4K?
No. It supports up to 1080p Full HD only.

Q5. Can I mirror content from my iPhone without USB-C®?
Yes, via native AirPlay® support.

Q6. Does this support Netflix and Prime Video?
Yes, it supports DRM and HDCP 1.4 protected content.

Q7. Can I use it for extended display mode (not just mirroring)?
Yes, if your OS supports it.

Q8. Will it work with Chrome OS or Chromebook?
Yes, via native Chromecast™ protocol.

Q9. Is audio transmitted with video?
Yes, 2.1 channel audio via HDMI™.

Q10. Can it be used in schools or offices with many devices around?
Yes, thanks to dual-band frequency for reduced interference.

Q11. Is it good for gaming?
Not ideal for competitive gaming due to slight latency (~130ms).

Q12. How is this different from casting via Chromecast?
This doesn’t rely on a Wi-Fi router; it makes a direct AV link.

Q13. Can I charge my phone while using this?
Yes, as long as your device supports it.

Q14. Is it suitable for outdoor use?
Yes, but within range and in dry conditions.

Q15. Does the HDMI™ receiver need a power source?
Yes, via USB™ Type-A (adapter or TV USB port).

Q16. What video codecs are supported?
H.264, VP8, and other standard formats.

Q17. How long is the setup time?
Usually under 30 seconds.

Q18. What if the display doesn’t show up?
Ensure USB-C® Alt Mode is supported and HDMI™ is connected.

Q19. Is firmware upgradable?
Not required; plug-and-play.

Q20. What if I lose the USB™ extension cable?
You can use any standard USB™ Type-A to A extension cable.
