J5Create Powerful JCD381 USB-C Dual HDMI Mini Dock – Expand Your Workspace with 4K Display, Ethernet & SuperSpeed USB
Turn your USB-C port into a full workstation with the J5Create JCD381 Dual HDMI Mini Dock. Experience seamless dual display via HDMI™, fast file transfer with USB™ 3.0, secure wired networking via Gigabit Ethernet, and USB-C® Power Delivery 2.0 charging – all packed in a sleek, champagne metallic design. Perfect for remote work, hybrid offices, and high-efficiency setups.
-

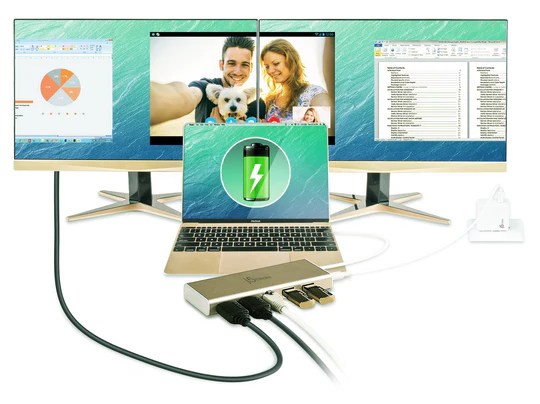

Connect 2 displays (4K + 2K) via dual HDMI™
-
USB-C® PD 2.0 charging support up to 60W
-
Gigabit Ethernet for reliable wired networking
-
2 x USB™ 3.0 ports for high-speed peripherals
-
Small, compact, and travel-ready
-
Product availability is dynamic. Final dispatch date will be confirmed after order placement.
Description
The J5Create JCD381 USB-C™ Dual HDMI™ Mini Dock transforms your USB-C® laptop into a powerful, multi-functional workstation in seconds. Whether you’re a creator, corporate professional, or remote worker, this pocket-sized hub ensures you’re always connected, charged, and productive—no matter where you are.
Key Features
-
Dual HDMI™ Display Expansion: Add one 4K display and one 2K/Full HD display to your setup. Ideal for multitasking, streaming, editing, or presenting.
-
USB-C® Power Delivery 2.0: Charge your USB-C® laptop or mobile device while using the dock. Supports up to 60W charging pass-through.
-
Gigabit Ethernet: Enjoy stable, fast wired internet for lag-free video calls, gaming, and secure downloads.
-
Dual USB™ 3.0 Ports: SuperSpeed USB™ with transfer speeds up to 5 Gbps – ideal for keyboards, mice, external drives, or USB headsets.
-
Sleek, Heat-Reducing Design: Engineered in aluminum with champagne metallic finish and built-in thermal management for 24/7 usage.
-
Cutting-Edge Compatibility: Works with most modern USB-C™ laptops, including Windows, macOS, and Chrome OS™ systems.
-
Travel-Ready: Weighs just 113.5g with a short 7.8” integrated cable for hassle-free mobility.
Display Performance
-
Dual Display Setup:
-
HDMI™ 1: 4K (3840 x 2160 @ 30Hz)
-
HDMI™ 2: 2K (2048 x 1152) or 1080p (1920 x 1080 @ 60Hz)
-
-
Single Display:
-
Up to 3840 x 2160 @ 30Hz
-
-
Extend or mirror screens based on your OS capabilities.
Ports & Interfaces
-

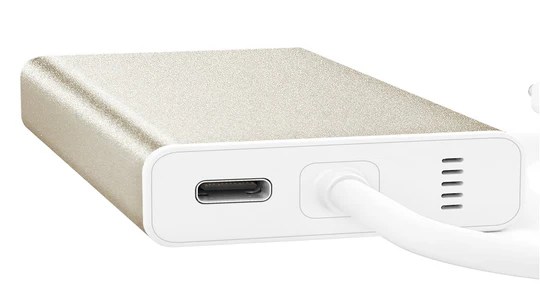

1 x USB-C® Power Delivery 2.0 Input (Up to 60W)
-
2 x HDMI™ Outputs
-
2 x USB™ 3.0 Type-A Ports (5 Gbps)
-
1 x RJ45 Gigabit Ethernet Port
System Requirements
-
Operating System: Windows® 10+, macOS® 10.14+
-
Hardware:
-
USB-C® port with DisplayPort™ Alt Mode & Power Delivery
-
Recommended:
-
For Office Use: Intel® Core™ i3, 2 GB RAM
-
For 2K Video: Intel® Core™ i5, 4 GB RAM
-
For Dual Display or 4K: Intel® Core™ i7, 8 GB RAM
-
-
Note: macOS® and Windows® require driver installation. Windows® will auto-install with network access and admin rights.
Power Specifications
-
Input Voltage: Up to 20V / Current: 3A
-
Output Voltage: Up to 20V / Current: 3A
-
Power Consumption: ≤ 450 mA
-
PD Pass-Through: Up to 60W charging to host laptop
Build & Dimensions
-
Material: Aluminum
-
Color: Champagne Metallic
-
Cable Length: 7.8 in. (198.12 mm)
-
Dimensions: 5.1″ x 2.1″ x 0.6″ (130 x 54 x 15 mm)
-
Weight: 4.00 oz (113.5g)
Thermal & Environmental Tolerance
-
Operating Temp: 32°F to 98°F (0°C to 37°C)
-
Storage Temp: 14°F to 140°F (-10°C to 65°C)
-
Humidity: <85%, non-condensing
Package Contents
-
1 x JCD381 USB-C® Dual HDMI™ Mini Dock
-
1 x Quick Installation Guide
Country of Origin
Made in Taiwan
Importer
Creative Peripherals & Distribution Ltd., Mumbai, India
Warranty Information
2-Year Limited Manufacturer Warranty
1. Product Features & Functions
Q1. What does the JCD381 USB-C™ Dual HDMI Mini Dock do?
A: It expands a USB-C™ port into two HDMI™ display outputs, two USB™ 3.0 ports, Gigabit Ethernet, and a USB-C® PD charging port—all through a single compact device.
Q2. Can I connect two monitors at once?
A: Yes, the adapter supports dual HDMI™ outputs: one up to 4K @ 30Hz and the other up to 2K @ 60Hz.
Q3. Does this dock support Power Delivery charging?
A: Yes, it supports USB-C® Power Delivery 2.0, delivering up to 60W to charge your laptop or phone.
Q4. Can I charge my mobile phone with this dock?
A: Yes, the USB-C® PD port can charge supported smartphones using a USB-C® power adapter.
Q5. Does it have any USB-A ports?
A: Yes, there are two USB™ 3.0 Type-A ports with transfer speeds up to 5 Gbps.
Q6. Does the dock support Ethernet?
A: Absolutely. It features a Gigabit Ethernet port for high-speed, stable internet connectivity.
Q7. Can I use all the ports at the same time?
A: Yes, all ports can be used simultaneously as long as your device supports the required power and data throughput.
Q8. Is hot-swapping supported?
A: Yes, you can plug and unplug peripherals without rebooting your system.
Q9. What material is the dock made of?
A: The JCD381 has a premium aluminum enclosure with a champagne metallic finish.
Q10. Does it support audio output?
A: Yes, HDMI™ 2.1 supports 2.1 channel audio output.
💻 2. Compatibility & Connectivity
Q11. Is this dock compatible with macOS?
A: Yes, it supports macOS® 10.14 and above. Driver installation may be required.
Q12. Does it work with Windows laptops?
A: Yes, Windows® 10 and later are supported. Drivers will auto-install with internet access.
Q13. Is it compatible with Chromebooks?
A: If the Chromebook supports USB-C™ with DisplayPort™ Alt Mode, it will work.
Q14. Can I use this with a MacBook Pro or Air?
A: Yes, it is fully compatible with USB-C™ equipped MacBooks.
Q15. Will it work with Dell, HP, Lenovo, or ASUS laptops?
A: Yes, as long as the laptop has a USB-C™ port with DisplayPort™ Alt Mode and Power Delivery.
Q16. Can I use this dock with an Android tablet or phone?
A: Only if your device supports USB-C™ DisplayPort™ Alt Mode. Compatibility varies by model.
Q17. Is it compatible with iPad Pro?
A: Yes, the newer iPad Pro models with USB-C™ support basic functionality.
Q18. Will it work with older USB-A laptops?
A: No, this dock is specifically designed for USB-C™ ports.
Q19. Does the dock require any software or drivers?
A: For Windows and macOS, drivers are required. Windows installs them automatically if the device has internet and admin rights.
Q20. Can I use this with a docking station or hub?
A: It's best used directly with a USB-C™ port for optimal performance.
🎮 3. Display, Speed & Performance
Q21. What’s the max resolution for a single display?
A: It supports up to 3840 x 2160 (4K) @ 30Hz for a single monitor.
Q22. What resolutions do both HDMI ports support when used together?
A: One HDMI port supports 4K @ 30Hz, and the other supports 2K (2048 x 1152) or Full HD (1080p) @ 60Hz.
Q23. Does it support 60Hz on both displays?
A: No, only the second HDMI™ port supports 60Hz at lower resolutions. 4K is limited to 30Hz.
Q24. Is the image quality suitable for video editing?
A: Yes, it provides excellent clarity and smooth visuals, ideal for content creators.
Q25. Will it work for gaming?
A: Casual and office gaming is fine. For serious gaming at high frame rates, 60Hz+ support is preferred.
Q26. What is the max data transfer speed?
A: The USB™ 3.0 ports support up to 5 Gbps transfer speeds.
Q27. Is internet speed affected when using Ethernet?
A: No, the Gigabit Ethernet port supports up to 1000 Mbps for fast, reliable connectivity.
Q28. Does the dock heat up?
A: It may become warm during heavy usage, but it has a heat-dissipating aluminum body to prevent overheating.
Q29. Can I watch 4K content through this dock?
A: Yes, provided your monitor and system support 4K @ 30Hz.
Q30. Does it support audio-video sync over HDMI™?
A: Yes, the HDMI™ 2.1 interface ensures smooth AV sync for most applications.
🛠 4. Build Quality, Power & Packaging
Q31. What is the color of the dock?
A: It comes in a stylish champagne metallic finish.
Q32. What’s the dock made of?
A: It is made from high-grade aluminum for durability and thermal control.
Q33. How long is the built-in cable?
A: The integrated USB-C™ cable is 7.8 inches (198 mm) long.
Q34. What is the weight of this dock?
A: It weighs just 113.5 grams, making it ideal for travel.
Q35. What is the size of this product?
A: Dimensions are 5.1” x 2.1” x 0.6” (130 mm x 54 mm x 15 mm).
Q36. What’s in the box?
A: 1 x JCD381 USB-C® Mini Dock and 1 x Quick Installation Guide.
Q37. What is the warranty period?
A: It comes with a 2-Year Limited Manufacturer Warranty.
Q38. What is the country of origin?
A: This product is made in Taiwan.
Q39. Who is the importer in India?
A: Creative Peripherals & Distribution Ltd., based in Mumbai.
Q40. Is the product BIS certified?
A: This is an original, globally certified product imported through authorized channels.
