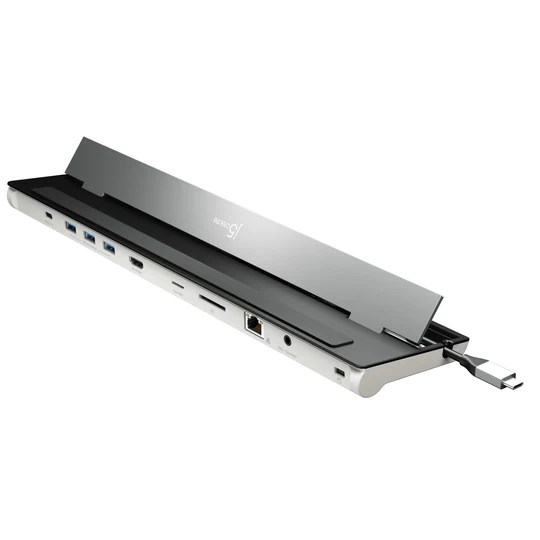

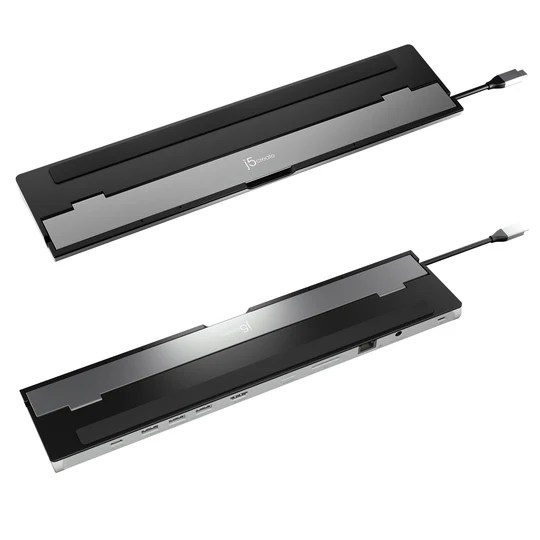

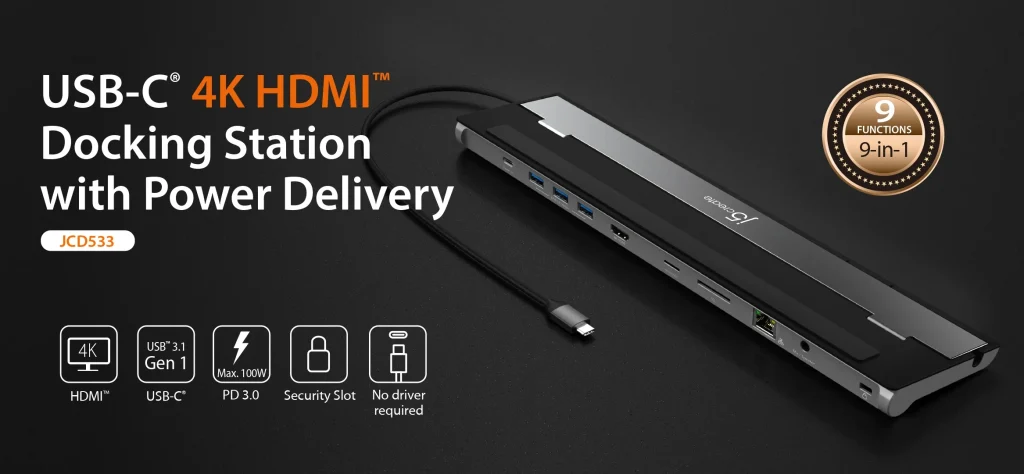

J5Create JCD533 Premium USB-C 4K HDMI Docking Station with Power Delivery – Your 9-Port Desktop Upgrade Hub

A. General Compatibility

1. Is the JCD533 compatible with MacBook M1/M2?

   • Yes, it works with all MacBooks that have USB-C ports supporting DisplayPort Alt Mode.

2. Can I use this dock with my iPad Pro?

   • Absolutely. iPad Pro models with USB-C work seamlessly.

3. Is it compatible with iPhone 15?

   • Yes, it supports iPhone 15 over USB-C.

4. Does it work with Windows laptops?

   • Yes, it’s fully compatible with Windows 10 or later.

5. Is Chrome OS supported?

   • Yes, it works well with Chromebook and Chrome OS devices.

B. Video Output & HDMI

1. What’s the maximum resolution supported?

   • 3840x2160 (4K) at 30Hz.

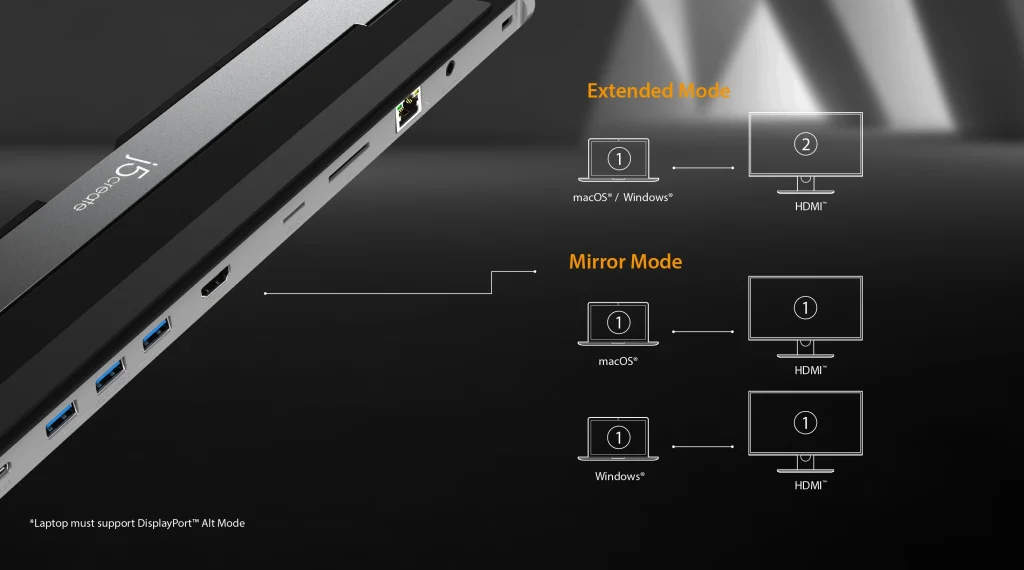

2. Can I use it to extend my laptop display?

   • Yes, it supports extended, mirrored, and primary display modes.

3. Does it support 144Hz or 60Hz refresh rate?

   • No, maximum is 30Hz at 4K.

4. Will it work with older HD monitors?

   • Yes, it supports all lower resolutions like 1080p and 720p.

5. Is HDR supported?

• HDR is not officially supported.

C. Power Delivery

1. Can it charge my laptop?

• Yes, up to 100W pass-through charging.

1. Do I need a power adapter?

• Yes, your USB-C charger should be connected to the PD port.

1. Will it charge other USB devices?

• Yes, via the USB ports and PD input.

1. Can it power a MacBook Pro while using all ports?

• Yes, with a high-wattage USB-C charger.

1. Is Power Delivery mandatory?

• Optional, but recommended for full functionality.

D. USB Ports & Data

1. What’s the speed of USB 3.0 ports?

• Up to 5 Gbps each.

1. How many external hard drives can I connect?

• Recommend only one bus-powered HDD at a time.

1. Does it support USB 2.0 devices?

• Yes, backward compatible.

1. Can I charge a phone from USB ports?

• Yes, it supports device charging.

1. Can I use a USB hub with this dock?

• Yes, but power limitations may apply.

E. Ethernet & Networking

1. Is the Ethernet port Gigabit?

• Yes, supports 10/100/1000 Mbps.

1. Does it auto-detect network?

• Yes, plug and play.

1. Can I use it as a LAN port for MacBook?

• Yes, works well for stable wired internet.

1. Is Wake-on-LAN supported?

• Not officially listed.

1. Does it need drivers?

• No, plug-and-play.

F. SD/microSD Card Readers

1. Can I use both SD and microSD at once?

• No, only one at a time.

1. What’s the max speed?

• UHS-I (up to 104 MB/s).

1. Is SDXC supported?

• Yes.

1. Can I use it for file transfers on macOS?

• Yes.

1. Does it support hot-swapping?

• Yes.

G. Audio Jack

1. Is the 3.5mm combo port mic-compatible?

• Yes, supports mic and headphones.

1. Can I connect a speaker?

• Yes.

1. Is audio available via HDMI too?

• Yes.

1. Does it support surround sound?

• 2.1 channel supported.

1. Will the audio lag?

• No noticeable delay.

H. Build & Design

1. What is the dock made of?

• Durable aluminum housing.

1. Does it overheat?

• Elevated design helps with heat dissipation.

1. Is it portable?

• Yes, lightweight and slim.

1. Is it fanless?

• Yes, silent operation.

1. Does it have indicator lights?

• No.

I. Other Usage Questions

1. Can I use it for Zoom calls?

• Yes, supports webcam, mic, and Ethernet.

1. Is this good for gaming?

• Basic productivity; not ideal for high-frame gaming.

1. Can I use it while traveling?

• Perfect travel companion.

1. Does it work with Steam Deck?

• Yes, limited to supported display resolution.

1. Can I use this in office setups?

• Yes, perfect for dual-monitor corporate use.

J. Troubleshooting / Special Cases

1. My HDMI is not working. Why?

• Ensure device supports DisplayPort Alt Mode.

1. Laptop not charging via PD?

• Use a higher-wattage PD charger.

1. Display flickering?

• Use high-quality HDMI cables.

1. USB ports not recognizing device?

• Ensure no power-hungry device is overloading the dock.

1. SD card not reading?

• Check format (FAT32/exFAT recommended).
